Re: Factory Layout v2

Postby docnjoj » Sun Aug 21, 2016 8:54 pm

Very superior work. I can't wait to see more.
otherDoc
David (Doc)
Fairhope, AL USA
After extensive recalculation, I have determined that the meaning of life is NOT 42! The secret of life, however is "enjoying the passage of time" (James Taylor)

Montignac
True GnATTERbox
True GnATTERbox
Posts: 42
Joined: Thu Jun 09, 2016 4:07 pm

Re: Factory Layout v2

Postby Montignac » Mon Aug 22, 2016 7:47 am


Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Mon Aug 22, 2016 6:06 pm

Evening all,

Decided to test my plans for the various lights I'll need for the layout by starting with the fluorescent light in the cabin. I cut three LED's from one of those rolls of LED strip, mine was 11m long so you get quite a few LED's for the money. These were then stuck, after having wires attached, to a strip of plasticard:


This assembly is then fixed onto the underside of the cabin roof:


Using the side of a plastic milk bottle, a 'shade' was cut out, scored and folded:


This is then fixed over the LED assembly with plasticard end plates:


And this is the result:


Now I know that 3 LED's are sufficiently bright I will tidy up the shade and end plates. I plan to use a variation of this for the main warehouse lights.

best rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

User avatar
Boghopper
GnatterBox Centurion
GnatterBox Centurion
Posts: 170
Joined: Fri Dec 05, 2008 6:52 pm
Location: East Sussex
Interests: Narrow gauge railway modelling

Re: Factory Layout v2

Postby Boghopper » Tue Aug 23, 2016 10:14 am

I am so loving this thread. The factory building is just like ones I knew when at art college in the late 60s. During the holidays I worked at Carter Tiles in Poole and fondly remember the great cavernous buildings. And that little elevated office, well it sends shivers down my spine, remembering the foreman's beady eyes looking out for trouble. Fantastic.
Capability Chris

Creating beautiful gardens across the southeast
http://chrisodonoghue.co.uk
http://gdngrs.com Greenwich and District Narrow Gauge Railway Society
- visit http://expong.org Expo Narrow Gauge

Sooty
'boxer
'boxer
Posts: 24
Joined: Sun May 01, 2016 5:56 pm
Interests: Gn15 Emmett style garden railway. Model garden railways in general.

Re: Factory Layout v2

Postby Sooty » Tue Aug 23, 2016 6:32 pm

Super.
What adhesive did you use for the plastic to milk bottle? I have found it difficult to glue plastic milk bottle material neatly.
I have 30 minute epoxy and I know how to use it.

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Tue Aug 23, 2016 9:46 pm

Hi,

I've used Evostick Contact glue - it seems to be holding so far......

Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

Hans H
True GnATTERbox
True GnATTERbox
Posts: 88
Joined: Sun May 07, 2006 1:58 pm
Location: Västerås, Sweden
Interests: Narrow Gauge and off roading

Re: Factory Layout v2

Postby Hans H » Wed Aug 24, 2016 1:17 pm

This is really cool :D Looking forward to following where this will lead.

Keep up the Gnood work Steve
Cheers
Hans Hammarsten
Västerås, Sweden

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Wed Aug 24, 2016 9:03 pm

Thanks Hans I will try....

I've started on the staircase this evening that will sit along side the cabin. First I knocked up a layout drawing in Photoshop to use as a template and then cut out the two stretchers and foot plates from 1mm polystyrene sheet:


Once these were cleaned up one of the stretchers was taped to the drawing and the foot plates glued in place in line with the guide lines. I used a small tee square to hold them for a few seconds whilst the glue set:


Once they were all in place I left it for around an hour to ensure the glue had fully set as the structure is still a bit flimsy at this point:


Once set, it was then just a case of fixing the second stringer followed by the end pieces which stiffened the whole assembly nicely. 1mm square styrene rod was then attached to the outside of the stringers to give the impression that they are C channel beams. Finally, 1mm square rod was was chopped into 1mm lengths and used to represent the bolts holding the foot plates in place - these will be sanded down to a consistent height once they are fully set:


And finally, a quick test in location:


Handrails and the small platform outside the cabin will be next, watch this space.....!

rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

User avatar
rue_d_etropal
Millegniumer
Millegniumer
Posts: 2165
Joined: Fri Oct 07, 2005 4:55 pm
Location: Accrington and sometimes France
Interests: France, any narrow/minmum gauge 40cm,50cm , 60cm

Re: Factory Layout v2

Postby rue_d_etropal » Thu Aug 25, 2016 9:36 am

I presume the track is going to be inset?
Simon Dawson
(Simon D.),
Narrow gauge Francophile interested in 1m, 60cm,50cm , 40cm and smaller gauges . Build in scales from 1/6th to 1/24th. Also 1/32nd and 1/35th using 16.5mm track to represent 50cm and 60cm gauges.
http://www.rue-d-etropal.com

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Thu Aug 25, 2016 1:18 pm

Hi Simon, yes the track will be inset although as to the method I'm still undecided - possibly plaster.

A further quick update this morning as I've made a start on the walkway adjoining the stairway, still some bracing and details to add:


best rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

User avatar
rue_d_etropal
Millegniumer
Millegniumer
Posts: 2165
Joined: Fri Oct 07, 2005 4:55 pm
Location: Accrington and sometimes France
Interests: France, any narrow/minmum gauge 40cm,50cm , 60cm

Re: Factory Layout v2

Postby rue_d_etropal » Thu Aug 25, 2016 7:06 pm

I know it's my system, but my 3D printed track is worth it(it can be reused easily, at a future date so offsets initial cost).
Otherwise the inset track method Michael Mott has used is one of best I have seen usin sleepered track(it should be possible to find his posts about it on this forum). Far too many layouts I see with poor inset track, in particular seeing sleepers (one thing Michael did well to cover), and for obvious reasons it is one feature I tend to look at very carefully.
Simon Dawson
(Simon D.),
Narrow gauge Francophile interested in 1m, 60cm,50cm , 40cm and smaller gauges . Build in scales from 1/6th to 1/24th. Also 1/32nd and 1/35th using 16.5mm track to represent 50cm and 60cm gauges.
http://www.rue-d-etropal.com

User avatar
chris69
Demi-Millegniumer
Demi-Millegniumer
Posts: 557
Joined: Sat Aug 11, 2007 7:06 pm
Location: BERLIN Germany
Interests: any thing with narrow gauge and quarries

Re: Factory Layout v2

Postby chris69 » Thu Aug 25, 2016 9:44 pm

Hi Steve,
love what you have been doing so far. But have one question, why did you put the shear brace of the platform under the stairs? You blocked the entrance to an otherwise great supply, tool store or work space......just thinking out loud.....
I remember from my time in factories as a student, that spaces like this where generally used and accessible. Unless it was a Machine space, then there was only a maintenance access......
Other then that SUPERB JOB, can't wait to see your progress....
Best Chris
It's my RR and it exists,in my mind!!!!!!!!

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Thu Aug 25, 2016 11:10 pm

Hi Simon,

I've seen your inset track system and I will definitely consider using it on the "next" layout, I'm on a bit of a budget on this one so I used track I already had from old projects. Thank you for reminding me about Michaels inset track method though as I had forgotten about that. Used watercolour paper if I remember correctly.

Chris, I think your right, I should put a tool store or something in that space. I shall be redoing that I think so thanks for the heads up....

Best rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

User avatar
rue_d_etropal
Millegniumer
Millegniumer
Posts: 2165
Joined: Fri Oct 07, 2005 4:55 pm
Location: Accrington and sometimes France
Interests: France, any narrow/minmum gauge 40cm,50cm , 60cm

Re: Factory Layout v2

Postby rue_d_etropal » Fri Aug 26, 2016 12:45 am

noproblem Steve, here is the link to Michael Mott's method infill track
Simon Dawson
(Simon D.),
Narrow gauge Francophile interested in 1m, 60cm,50cm , 40cm and smaller gauges . Build in scales from 1/6th to 1/24th. Also 1/32nd and 1/35th using 16.5mm track to represent 50cm and 60cm gauges.
http://www.rue-d-etropal.com

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Fri Aug 26, 2016 7:23 pm

Thanks Simon, saved me hunting for it.

Some progress today, I took Chris' suggestion and turned the under stairs area into a storage cupboard. Good suggestion Chris I think it works well. Just loosely fitted at the moment so some of the angles are a bit weird. I will add boxes and clutter accordingly.




Handrails next I think....

best rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

NotHarryPotter
GnatterBox Centurion
GnatterBox Centurion
Posts: 267
Joined: Fri Nov 25, 2011 11:33 am
Location: Wamberal NSW Australia
Interests: On15, On30, 9mm NG, Gn15

Re: Factory Layout v2

Postby NotHarryPotter » Sat Aug 27, 2016 12:40 am

Great work Steve. This will be such an interesting and atmospheric railway,
cheers
Geoff :D
"I would not join any club that would have someone like me for a member." -- Groucho Marx

Geoff

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Tue Aug 30, 2016 8:49 pm

Thanks Geoff, appreciate the feedback.

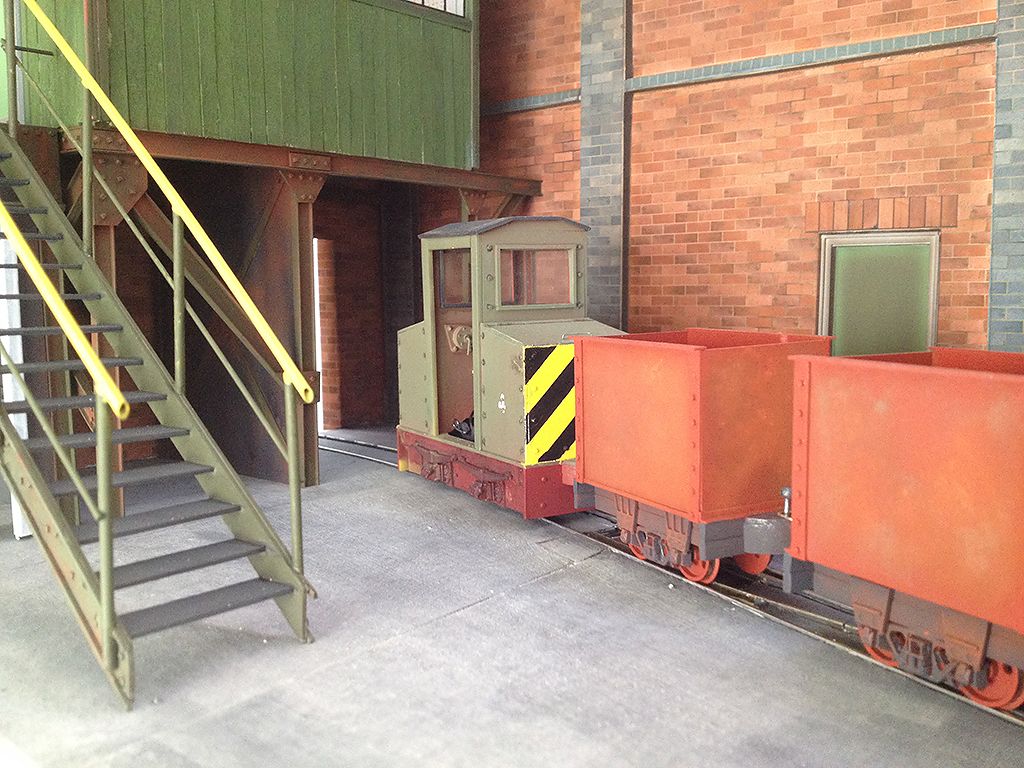

A bit more progress over the weekend, handrails added and a few details added. Also started weathering the structures slightly.





All the best

Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

User avatar
henrix72se
Seasoned Campaigner
Seasoned Campaigner
Posts: 472
Joined: Mon Oct 27, 2003 8:40 pm
Location: Gothenburg, Sweden
Interests: trains, photography, outdoor life.

Re: Factory Layout v2

Postby henrix72se » Wed Aug 31, 2016 1:40 pm

WOW, great !

Haven't been on the gnatterbox for a while. "Crazy Hank" just tipped me about this thread.

Also great to have a reason to visit here more often again.

/Henrik
I build Industrial and Military Light Railways in 1/35n18 scale - http://Laurell.Today/

User avatar
docnjoj
Demi-Millegniumer
Demi-Millegniumer
Posts: 757
Joined: Sun Jan 14, 2007 3:03 pm
Location: Fairhope AL
Interests: used to model 7/8 scale but now am definitely hooked on GN15 as my only scale until now. G9 has appeared.

Re: Factory Layout v2

Postby docnjoj » Wed Aug 31, 2016 7:35 pm

Simply wonderful. Love the railings.
otherDoc
David (Doc)
Fairhope, AL USA
After extensive recalculation, I have determined that the meaning of life is NOT 42! The secret of life, however is "enjoying the passage of time" (James Taylor)

NotHarryPotter
GnatterBox Centurion
GnatterBox Centurion
Posts: 267
Joined: Fri Nov 25, 2011 11:33 am
Location: Wamberal NSW Australia
Interests: On15, On30, 9mm NG, Gn15

Re: Factory Layout v2

Postby NotHarryPotter » Wed Aug 31, 2016 10:31 pm

It is looking great! :D
cheers
Geoff
"I would not join any club that would have someone like me for a member." -- Groucho Marx



Geoff

User avatar
chris69
Demi-Millegniumer
Demi-Millegniumer
Posts: 557
Joined: Sat Aug 11, 2007 7:06 pm
Location: BERLIN Germany
Interests: any thing with narrow gauge and quarries

Re: Factory Layout v2

Postby chris69 » Thu Sep 01, 2016 8:52 pm

GREAT job on the storage room! now a switch/fuse box , stationary compressor and a welding cart to clutter up the other space........
Sorry but my imagination takes over at times.....
also like how you did the catwalk and railings.......
looking forward to your progress, looks like a super one in the making.
All the best
Chris
It's my RR and it exists,in my mind!!!!!!!!

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Sun Sep 04, 2016 8:56 pm

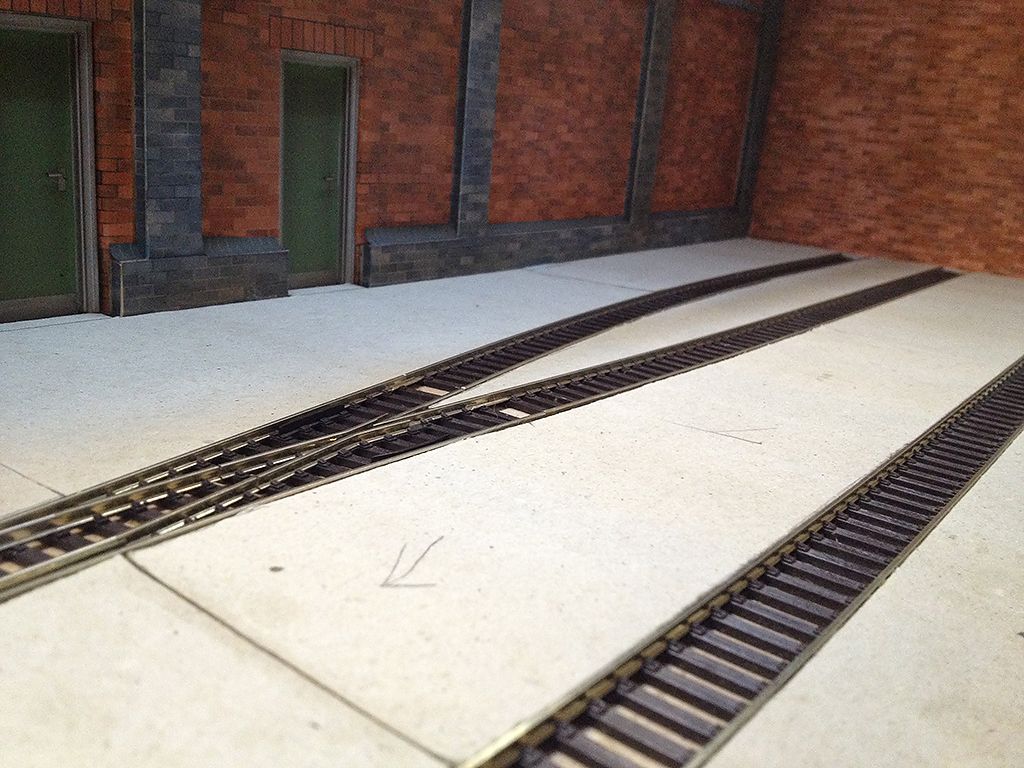

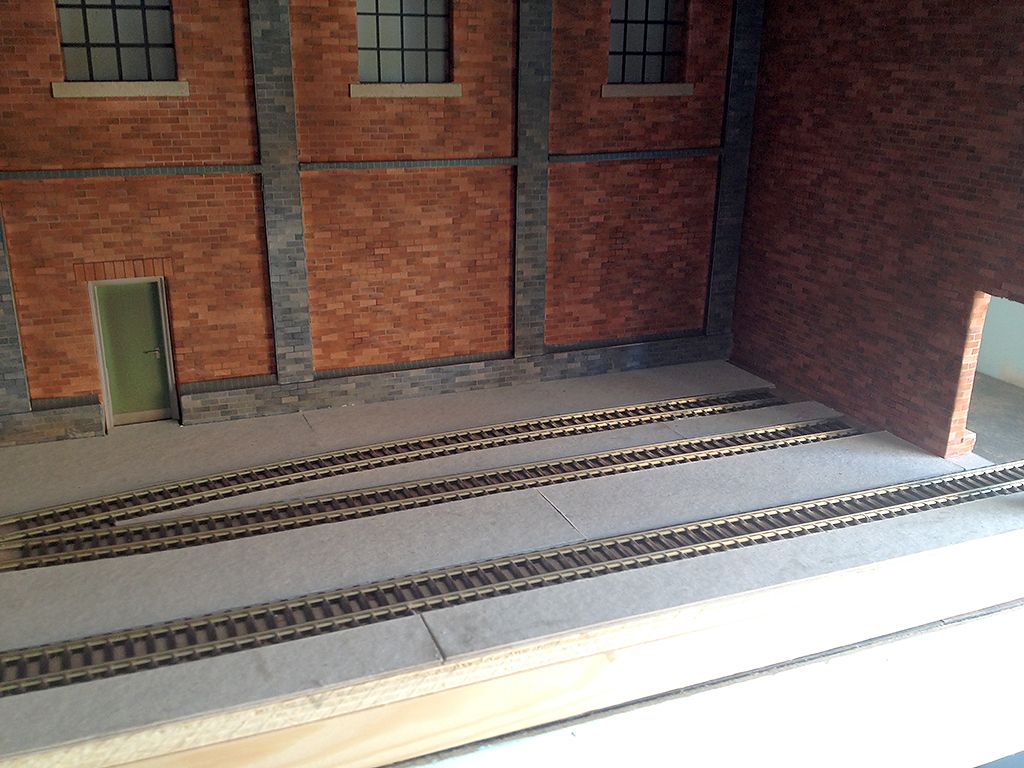

Thanks Chris, I am steadily putting together some fuse boxes, electrical cupboards etc so these will appear later. For now though I've taken the plunge and done the factory floor. I've used a method first described by Micheal Mott (Original post: http://forum.gn15.info/viewtopic.php?f=1&t=1158&start=500) but ended up having to modify the result as you will see. I first fixed two layers of 1mm grey card between the tracks - I would have preferred to use 2mm card but could not source any locally. I left it to dry overnight:


On top of this a further layer of 1 mm card, this time butted up against the outside of each rail:

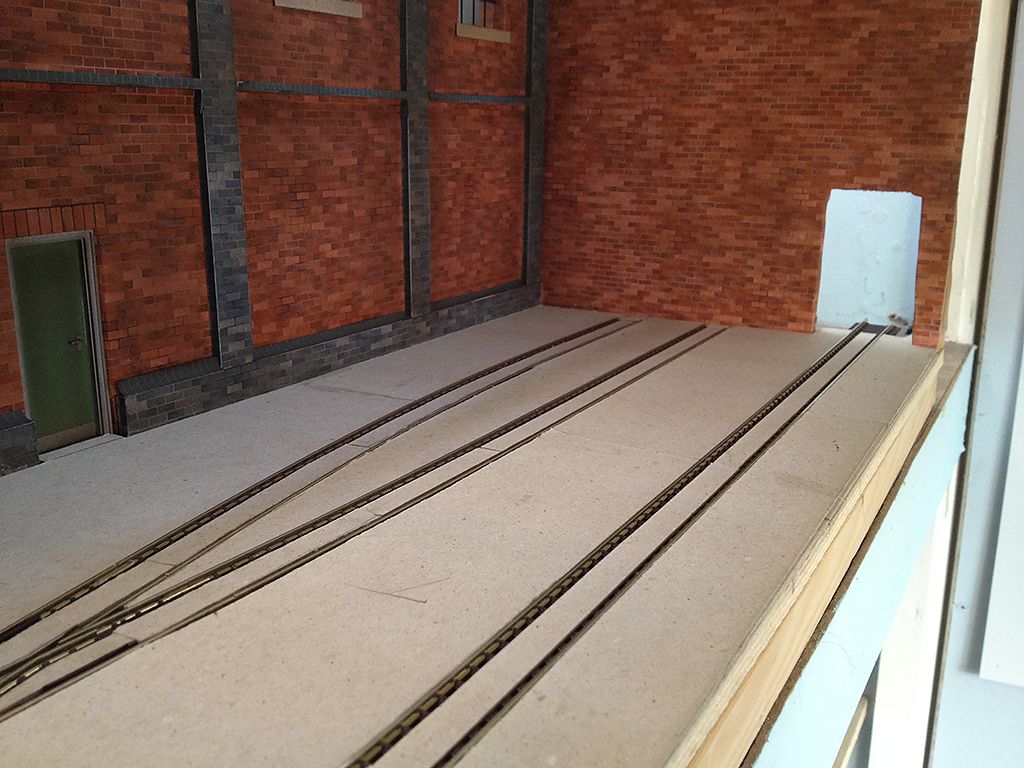

Next came a central strip of 1mm card, 10mm wide down the centre of each track:


This was then covered with 140gsm watercolour paper between the rails pushing down the edges at the rails and the whole lot given two coats of acrylic gesso:


This was left overnight to harden. It is at this point I had to deviate from Michael's method as there was insufficient clearance for the wheels on the Hornby Smokey Joe chassis. It was necessary to remove a strip from inside each rail to give clearance. It was then given a couple of coats of medium/dark grey and left to dry. Once dry an overall dusting of white chalk was then scrubbed into the surface:

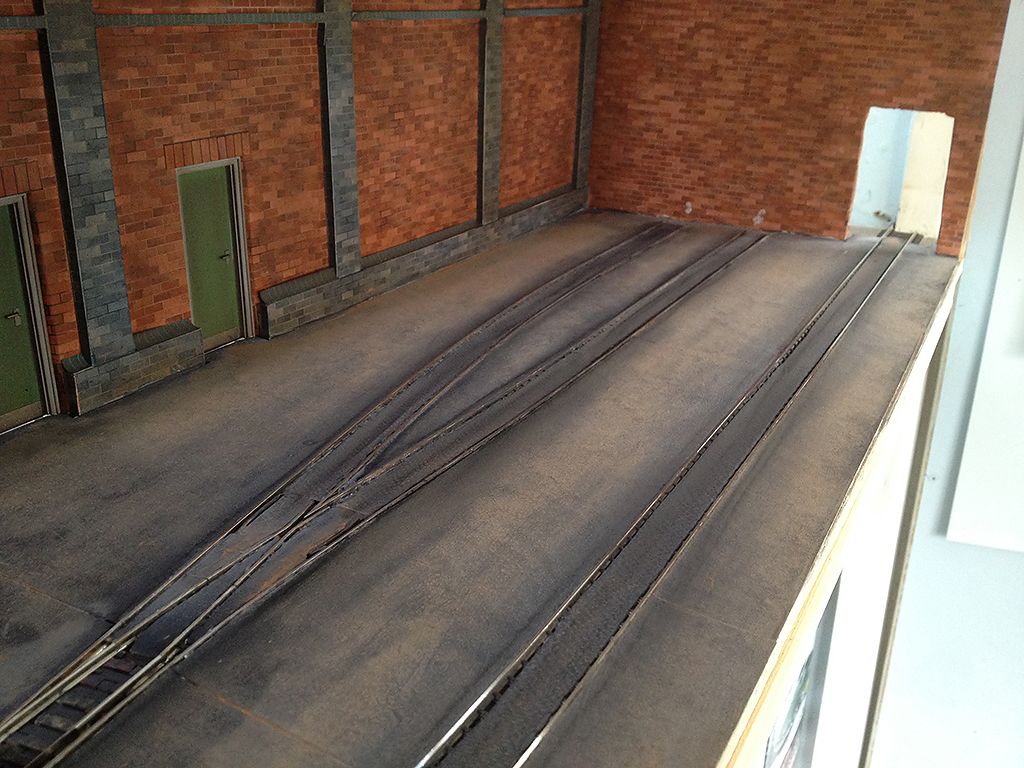

And a quick test hot to see how it was looking:

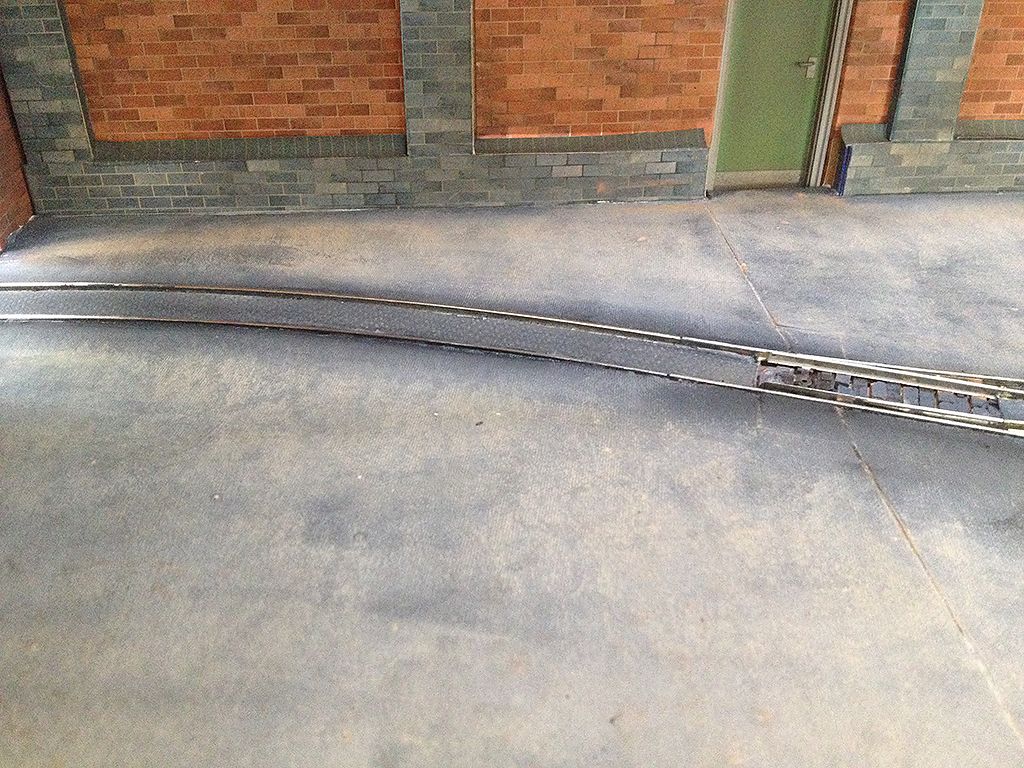

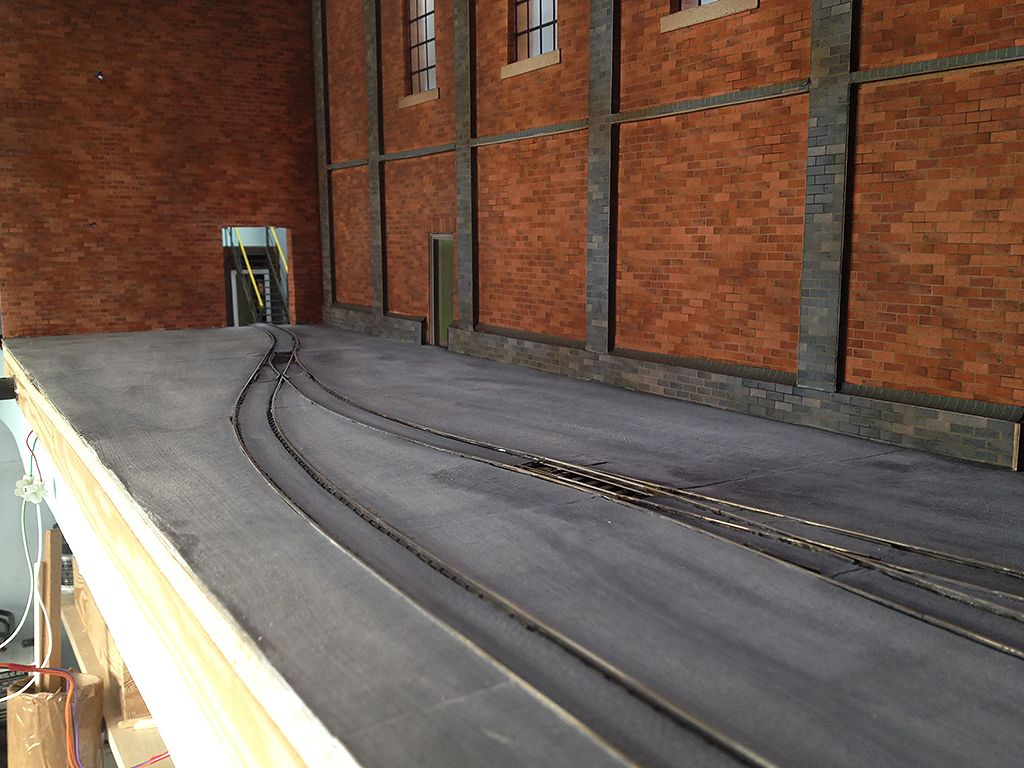

I then added a bit more colour using pastels and rubbed into the surface:



Best rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17

User avatar
KotangaGirl
'boxer
'boxer
Posts: 9
Joined: Thu May 26, 2016 2:54 am
Interests: !6mm scale narrow gauge. New Zealand bush tramways. Steam monorails

Re: Factory Layout v2

Postby KotangaGirl » Wed Sep 07, 2016 2:33 pm

A layout set inside a cavernous factory; - that's something I've not seen before. A really excellent model too and with great atmosphere and character. :D
Procrastinate NOW! ;)

What has reality done for you lately?

Annie from New Zealand.

User avatar
Nevadablue
Demi-Millegniumer
Demi-Millegniumer
Posts: 830
Joined: Sat Apr 12, 2014 8:33 pm
Location: Nevada
Interests: model trains, model steam
Gn15, G, 1:24ish people and scenery

Re: Factory Layout v2

Postby Nevadablue » Wed Sep 07, 2016 6:36 pm

I had missed a bunch of updates. Really nice work, thanks for letting us peek in. :D
Ken

Steve Welch
True GnATTERbox
True GnATTERbox
Posts: 73
Joined: Thu Dec 16, 2004 10:32 pm
Location: Wrexham, North Wales

Re: Factory Layout v2

Postby Steve Welch » Fri Sep 09, 2016 8:04 pm

Hi all,

Slow week on the layout this week but I have managed to get the supports on the left hand walk way fitted and a couple of test shots taken.

None of this is permanently fixed in place yet as I still have to detail the walls with various pipe/cable runs etc so please excuse a spurious gaps/misaligned joints.




My current job is filling in the gap alongside the inner rails left to try and hide the rail chairs with DAS clay so we'll see ho that turns out.... :roll:

best rgds
Steve
Factory layout photo gallery (OneDrive) : https://1drv.ms/f/s!Alkt3t-N6ZhsiwFhr3gfMaH2cr17


Return to “Modelling Matters”

Who is online

Users browsing this forum: No registered users and 2 guests
