SMITHIES...BOXES

Postby Rockley Bottom » Wed Dec 16, 2009 2:02 pm

In answer to questions on boxes, this is how I produce the small ones

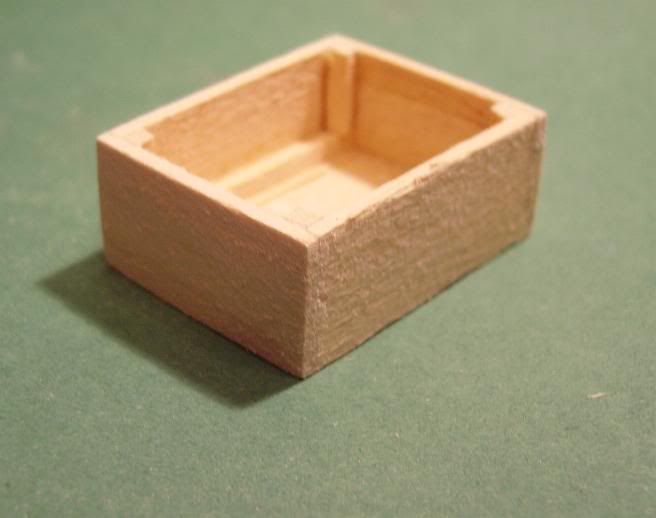

The box should have triangular bits in ths corners but it was too much bother to produce them, so it square stock :wink:

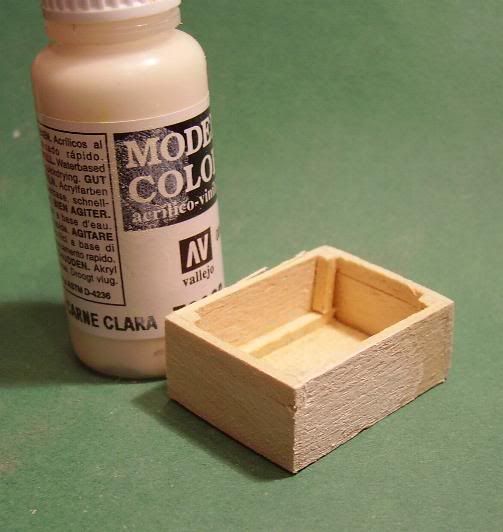

I rubbed some paint into one end of each long side with my fingure.

A strip of home produced transfers(decals)

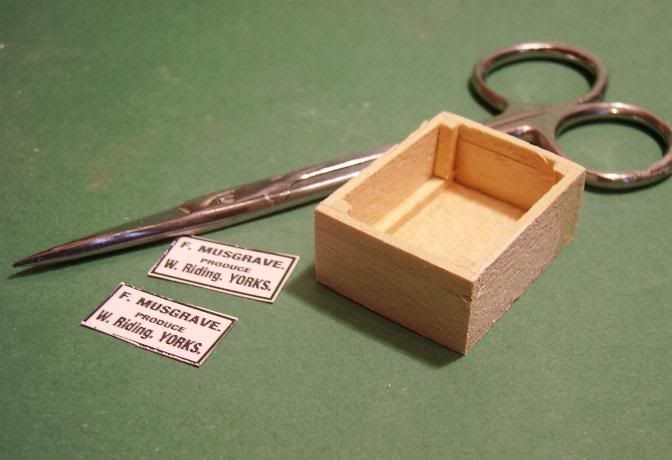

Trimmed ready for soaking

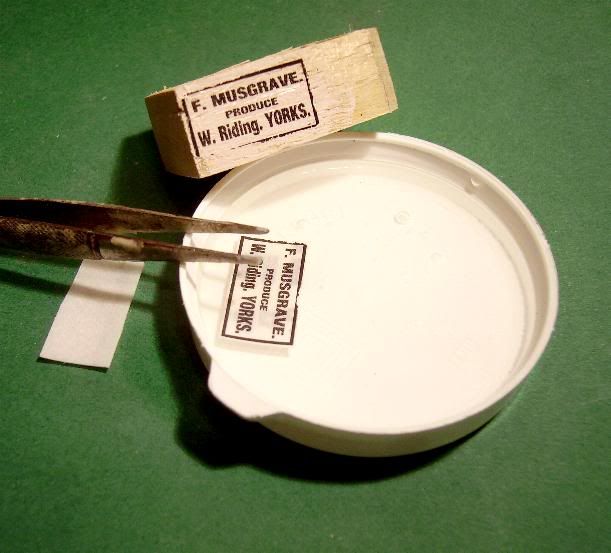

Soaking transfers to loosen backing paper with one already added.

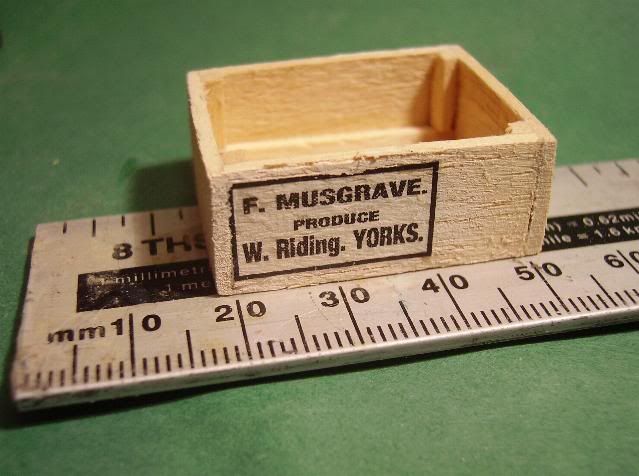

showing the size of each small box

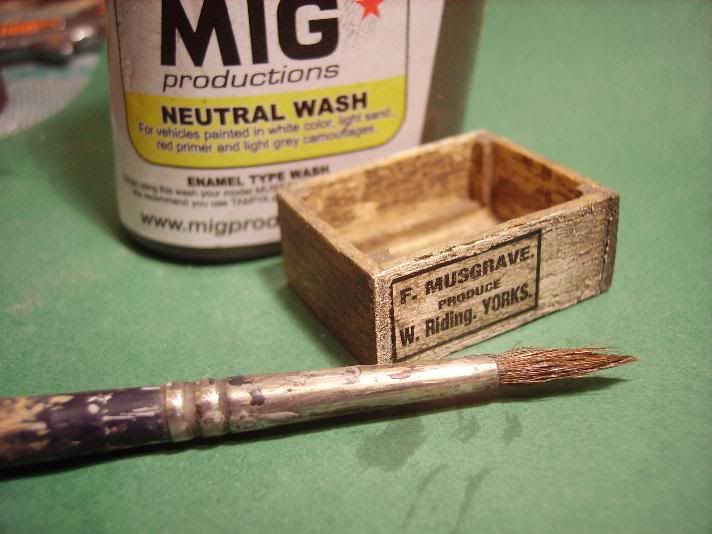

The weathering wash
Ready to join the other workind boxes :lol: :lol: :lol:

Regards Ralph

User avatar
Gerry Bullock
Millegniumer
Millegniumer
Posts: 3220
Joined: Wed Jul 30, 2003 8:07 pm
Location: S.E.Essex
Interests: Gn15 and O Gauge at Club.

Postby Gerry Bullock » Wed Dec 16, 2009 2:51 pm

Easy when you know how Ralph, the boxes look great. The transfers are another matter if, as you say, they require a Laser Printer.
So little time, so many ideas!!!!! GerryB.
http://gn15gnutt.blogspot.com/

underworld
GnatterBox Centurion
GnatterBox Centurion
Posts: 162
Joined: Wed Sep 23, 2009 2:23 pm
Location: NW Ohio, SE Michigan
Interests: narrow gauge everything...and standard gauge too!!!

Postby underworld » Wed Dec 16, 2009 3:05 pm

Ralph, the weather wash is awesome!!! 8) Hadn't seen that stuff before.


underworld
http://www.myspace.com/underworldimage
Currently on tour with Sleeper Cell

Sleeper Cell new album out soon!

Listen for me mornings 5:30-10 89Xradio.com
Shooting video for MTVs Making Of A Metal Band

User avatar
Rockley Bottom
Demi-Millegniumer
Demi-Millegniumer
Posts: 861
Joined: Mon Mar 07, 2005 8:48 am
Location: Norwich Norfolk
Interests: NG railways

Postby Rockley Bottom » Wed Dec 16, 2009 3:07 pm

Gerry

You can use an ink jet printer instead of a laser printer, but you have to coat the finished print with a water proof spray to stop the ink running when it is soaked in water.

The laser ink will not run, so it makes it slightly easier
Ralph

User avatar
dieselwater
Millegniumer
Millegniumer
Posts: 1021
Joined: Sun Sep 21, 2008 4:19 pm
Location: Taipei, Taiwan
Interests: Model railways, painting, guitar

Postby dieselwater » Wed Dec 16, 2009 3:09 pm

Very Gnice little SBS, which no doubt I'll be having a go at in the new year. Thanks Ralph :D
Little old lines to somewhere.

David.

User avatar
Glen A
Millegniumer
Millegniumer
Posts: 1311
Joined: Wed May 02, 2007 8:34 pm
Location: Christchurch, New Zealand
Interests: Gn15, G 1:24

Postby Glen A » Wed Dec 16, 2009 7:18 pm

Thanks Ralph.

User avatar
Rockley Bottom
Demi-Millegniumer
Demi-Millegniumer
Posts: 861
Joined: Mon Mar 07, 2005 8:48 am
Location: Norwich Norfolk
Interests: NG railways

Postby Rockley Bottom » Wed Dec 16, 2009 9:00 pm

Had a go at a cauliflour to add to the veg products The mesh is what I used to get the texture on the cauliflour head. It was a matter of rolling the cream ball onto it to break up the smoothness



Ralph

User avatar
michael
Millegniumer
Millegniumer
Posts: 1852
Joined: Sat Nov 06, 2004 4:10 pm
Location: Alberta Canada
Interests: Gn15

Postby michael » Wed Dec 16, 2009 10:45 pm

Brilliant :!: :!: Absolutely brilliant :idea:

They look great Ralph.
Regards Michael
If you believe you can make something, you can make it.

http://users.xplornet.com/~macton/index.html

jay
True GnATTERbox
True GnATTERbox
Posts: 40
Joined: Sun Sep 26, 2004 1:35 pm
Location: narragansett, rhode island

Postby jay » Wed Dec 16, 2009 10:59 pm

underworld wrote:Ralph, the weather wash is awesome!!! 8) Hadn't seen that stuff before.
underworld



MIG stuff is big with military modelers:


http://migproductions-usa.com/index.php/pigments.html


http://www.migproductionsforums.com/php ... start_here

User avatar
Chrisp
'boxer
'boxer
Posts: 23
Joined: Mon Nov 30, 2009 11:18 pm
Location: Santa Cruz, CA
Interests: Industrial and Lumber RRs

Postby Chrisp » Thu Dec 17, 2009 12:50 am

That is really convincing cauliflower, and the crate is first rate.
Have a gnice day.

User avatar
Rockley Bottom
Demi-Millegniumer
Demi-Millegniumer
Posts: 861
Joined: Mon Mar 07, 2005 8:48 am
Location: Norwich Norfolk
Interests: NG railways

Postby Rockley Bottom » Thu Dec 17, 2009 1:24 am

Thanks fellars :lol: :lol: Doing them is fun :!: :!:
I always knew that the model-makers in my art school had the most fun in their "make believe" world.
Much more interesting than the pile of forms that flooded onto my desk.

I am just making up for lost time :wink: :wink: :wink:

Ralph

User avatar
Adrian
Demi-Millegniumer
Demi-Millegniumer
Posts: 718
Joined: Mon Apr 27, 2009 8:18 am
Location: Melbourne Australia
Interests: model railways including Gn15

Postby Adrian » Thu Dec 17, 2009 1:25 am

G'day Ralph

Wondered how the texture was added to things like the cauliflower.....real easy when you know how :!:

Thanks for sharing.

Cheers
Adrian Hoad
I might be daft but not stupid.

User avatar
Rockley Bottom
Demi-Millegniumer
Demi-Millegniumer
Posts: 861
Joined: Mon Mar 07, 2005 8:48 am
Location: Norwich Norfolk
Interests: NG railways

Postby Rockley Bottom » Fri Dec 18, 2009 8:53 pm

Two more types of fruit, Conference pears and Golden Delicious apples.
The stalks in the pears are thin plastic rod put into the putty Fimo. It melts a little in the oven but hardens again as it cools. May try some copper wire in the next batch, as it is thinner and will not melt



Ralph

User avatar
JT Previa
True GnATTERbox
True GnATTERbox
Posts: 39
Joined: Thu Oct 29, 2009 1:54 am
Location: Massachusetts, GNew England
Interests: Industrial Narrow Gauge, slot cars

Postby JT Previa » Sat Dec 19, 2009 2:35 am

Impressive quality work at such small size. :shock:

Love the details and simple effective techniques. Thanks for explaining!
JT

User avatar
DCRfan
Millegniumer
Millegniumer
Posts: 1902
Joined: Fri May 23, 2003 7:26 am
Location: Kiwi in Ottawa, Canada
Interests: Very narrow gauge, military & industrial railways

Postby DCRfan » Sat Dec 19, 2009 4:47 am

:roll: As with a lot of these craftmen modellers I'm sure the fruit & veg is full scale and they just make over scale boxes and BIG transfers :lol: :lol:

Amazing skills
Paul
Gnu Zealand

User avatar
dieselwater
Millegniumer
Millegniumer
Posts: 1021
Joined: Sun Sep 21, 2008 4:19 pm
Location: Taipei, Taiwan
Interests: Model railways, painting, guitar

Postby dieselwater » Sat Dec 19, 2009 5:14 am

Stunning work Ralph. The painting is first class.
Little old lines to somewhere.

David.
