Postby Boghopper » Wed Sep 24, 2014 11:17 am

Dumb buffers, fabricated from balsa to give a thicker section of timber are now in place. The whole body was given a coat of a mix of Humbrol 56, aluminium, and 29, matt dark earth, to give an all-over aged look. Then a first top coat of 89, matt middle blue, was applied sparingly so the 'wood' shows through. Next I'll apply a thin coat of green to suggest a repaint at some time.

Capability Chris

Creating beautiful gardens across the southeast
http://chrisodonoghue.co.uk
http://gdngrs.com Greenwich and District Narrow Gauge Railway Society
- visit http://expong.org Expo Narrow Gauge

User avatar
Boghopper
GnatterBox Centurion
GnatterBox Centurion
Posts: 170
Joined: Fri Dec 05, 2008 6:52 pm
Location: East Sussex
Interests: Narrow gauge railway modelling

Postby Boghopper » Wed Sep 24, 2014 11:49 am

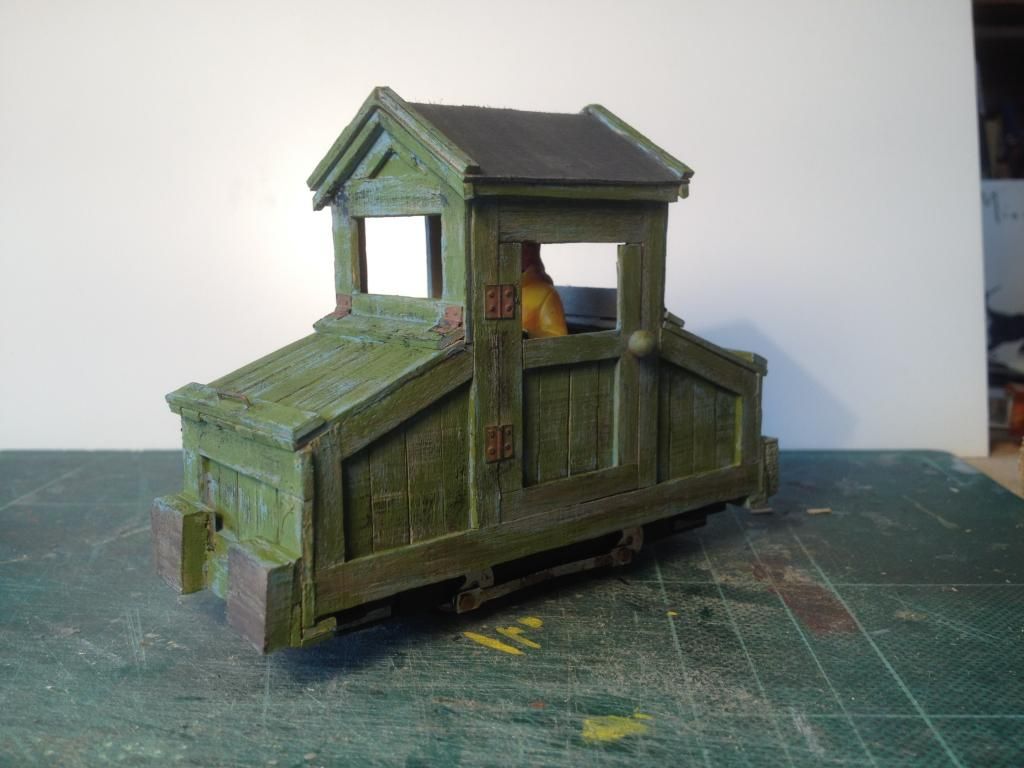

I've now painted the 'lid' with a mixture of black and grey to represent roofing felt. The second coat of 80, matt grass green, has been applied thinly over the body, allowing the blue and the wood to show through. The hinges and handles have been lightly brushed with 70, matt brick red, which I always to use to portray old rusted metal. Then a very light light brushing of matt black has been wafted over to tone it down.

I assuming batteries and a heavy duty motor so do you think there would be any external signs, on the bodywork, of their internal presence?

Capability Chris



Creating beautiful gardens across the southeast

http://chrisodonoghue.co.uk

http://gdngrs.com Greenwich and District Narrow Gauge Railway Society

- visit http://expong.org Expo Narrow Gauge

User avatar
Chris18
GnatterBox Centurion
GnatterBox Centurion
Posts: 115
Joined: Mon Sep 01, 2014 3:16 pm
Location: France
Interests: G and Gn15.

Postby Chris18 » Wed Sep 24, 2014 12:10 pm

Well done. I really like this little beast.
All we are is dust in the wind...
Chris

My favorite place in the world:
http://www.bellevue-cottage.com/en/index.html

User avatar
Broadoak
GnatterBox Centurion
GnatterBox Centurion
Posts: 335
Joined: Wed Jul 07, 2010 5:42 pm
Location: Northamptonshire
Interests: British Narrow gauge, American shortlines,anything that runs on rails really.

Postby Broadoak » Thu Sep 25, 2014 8:40 am

I too like your mobile tool shed it really has a bit of character. 8)
Peter M

User avatar
Willow Creek Traction
Demi-Millegniumer
Demi-Millegniumer
Posts: 923
Joined: Wed Feb 07, 2007 5:14 am
Location: Boonville, Missouri, USA
Interests: HO, On30, G/Hn15, regular G, kites, model rockets, the occasional model boat, retro sci-fi miniatures game.

Postby Willow Creek Traction » Thu Sep 25, 2014 11:45 am

Wood texture shows grandly.
later, Forrest Today's scientists have substituted mathematics for experiments, and they wander off through equation after equation, and eventually build a structure which has no relation to reality. -- Nikola Tesla, July, 1934

User avatar
Boghopper
GnatterBox Centurion
GnatterBox Centurion
Posts: 170
Joined: Fri Dec 05, 2008 6:52 pm
Location: East Sussex
Interests: Narrow gauge railway modelling

Postby Boghopper » Sat Sep 27, 2014 11:46 am

Ventilator panel fashioned from ali food tray with louvres pushed out is now fixed to front.

With a loaned circle of set track running trials have commenced. Track very dirty but after a rub with a graphite pencil slow, smooth running now achieved. Video below to demonstrate.

Capability Chris



Creating beautiful gardens across the southeast

http://chrisodonoghue.co.uk

http://gdngrs.com Greenwich and District Narrow Gauge Railway Society

- visit http://expong.org Expo Narrow Gauge

User avatar
Gerry Bullock
Millegniumer
Millegniumer
Posts: 3220
Joined: Wed Jul 30, 2003 8:07 pm
Location: S.E.Essex
Interests: Gn15 and O Gauge at Club.

Postby Gerry Bullock » Sat Sep 27, 2014 4:56 pm

Runs well Chris. Referring back to your ? on external signs (last Wednesday) the battery size would require crane assistance to effect a replacement.
Given sloping hoods chances are that crane operator would be bound to hit edges from time to time. :wink:
So little time, so many ideas!!!!! GerryB.
http://gn15gnutt.blogspot.com/

User avatar
Boghopper
GnatterBox Centurion
GnatterBox Centurion
Posts: 170
Joined: Fri Dec 05, 2008 6:52 pm
Location: East Sussex
Interests: Narrow gauge railway modelling

Postby Boghopper » Sat Sep 27, 2014 7:04 pm

You want me to knock it about a bit Gerry??!!
Capability Chris



Creating beautiful gardens across the southeast

http://chrisodonoghue.co.uk

http://gdngrs.com Greenwich and District Narrow Gauge Railway Society

- visit http://expong.org Expo Narrow Gauge

User avatar
Boghopper
GnatterBox Centurion
GnatterBox Centurion
Posts: 170
Joined: Fri Dec 05, 2008 6:52 pm
Location: East Sussex
Interests: Narrow gauge railway modelling

Postby Boghopper » Fri Oct 24, 2014 12:46 pm

Well, it's too late to do any more - even if I had the time - but I'm happy with the wee beastie now. It looks as I planned and runs growlingly well so even if I don't win the critter competition (unlikely seeing the stiff opposition) I'm pleased I took the time to build it and enter. It's been an interesting exercise in large scale modelling but I don't feel inclined to pursue the scale any further.

So, if anyone is interested, I'd be happy to sell it after Expong. If you're going, take a look, otherwise here are some pictures of the finished article.
