New low price Gn15 wagons

Posted: Sat Dec 13, 2014 7:04 pm
by tebee
As a change from thinking about forums, taxes and fixing houses I decided to relax this afternoon and do some design work.

Many people have said with the Pepper 7 range being unobtainable at the moment it's going to be hard for people to get into Gn15, as there is so little else available. Well I've decided to try and do something about that.

Now my original range of Gn15 wagons was somewhat larger than Steve's Pepper 7 range as mine was meant to represent 18 in gauge stuff, rather his smaller 15 inch gauge. This was partly my personal preference and partly that I did not want to be splitting a very small market place with him.

But as his range is not available that doesn't really apply now and I thought I'd have a go to see if I could make 3-D printed wagons similar to his and for a similar price just to try to fill the current gap in the market. I've done this partly by making them smaller, partly by hollowing the frames out to minimize material, but also by cutting down my commission to 1-3$ per wagon to make them more affordable, so people do have some relatively low cost wagons to buy. When the Steve's range becomes available again I intend to increase the prices on these so I'm not stealing his market and I make a decent profit out of them.

To find these do this search http://www.shapeways.com/search?q=gn15+small It will give you a few other peoples items as well, Shapeways search is rather poor unfortunately. This is a sample :-


http://shpws.me/zVSI

The suggested wheels are Proto 2000 36" HO ones. These are metal and very free running, but most OO or HO wheels will fit as long as the flanges are not too big. They will take Kadee couplings and I'm working on a couple of simple couplers to fit as well.

As always, let me know what you think folks !

Tom

Re: New low price Gn15 wagons

Posted: Sat Dec 13, 2014 9:50 pm
by Uncle Tel
Hi

The image shows a slot for a coupling, will a kadee fit, and is it at the standard height as per the kadee coupling jig

Many thanks

Eltel

Re: New low price Gn15 wagons

Posted: Sat Dec 13, 2014 9:57 pm
by johna
Great idea Tom. Couple of questions for you

1. I do not use kadee, just simple pin and chain so will there be an option to fit this type of coupler box.

2. How do you order from "Shapeways" and I see their prices are in Euros not pounds,

John

Re: New low price Gn15 wagons

Posted: Sat Dec 13, 2014 10:24 pm
by tebee
Yes it takes a Kadee no 5 box or similar with the bits on the side cut off. It should work out the right hight, although that depends on the size of wheels used. I''ll see if I have a photo of my test ones from before, if not will take some tomorrow.

At the moment I'm working on two possible link and pin type couplings, which will fit in the hole instead of a Kadee one. One is a curved block with a pin in it like the ones I did for O9, other is a version of these to fit in slot - http://shpws.me/wd9V

You pay direct to Shapeways with Paypal - this automatically lets you pay a Euro amount with a Sterling bank card.

Tom

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 12:22 am
by Nevadablue
Thanks for doing this Tom. I'm off to browse the selection. I use link and pin couplers or homemade stuff. I should be OK. :)

OK, a question...

Wouldn't this bolster wagon work for logs, connecting two of them with a long 'rooster'?


Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 12:41 am
by tebee
Yes it would, though it's UK style rather than US really, if you changed the swivelling bolster it would look much more like the ones used on your side of the pond though.......

More ideas...

Tom

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 9:48 am
by Uncle Tel
Hi Me again

Thanks for getting back with my Kadee question.

Does 6ft chassis also accommodate a kadee ?

What are the dimensions of the 6ft chassis (length & width)

What is the uk price £ And P&P ?

Thanks

Uncle Tel / Eltel

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 10:39 am
by johna
tebee wrote:
At the moment I'm working on two possible link and pin type couplings, which will fit in the hole instead of a Kadee one. One is a curved block with a pin in it like the ones I did for O9, other is a version of these to fit in slot - http://shpws.me/

Tom


Hi Tom

Thanks for the info. Please let me know whenever you have the link and pin couplings for sale then I can order the wagons in one lot.

John

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 10:46 am
by rue_d_etropal
very gNice.
The Shapeways page gives the dimensions of the models.
For wheels , I have found care has to be taken with my own designs with flange touching bottom of wagon when I wasn't using finescale ones. Weight is also something to take into account as they are a lot lighter than resin. Length of axle is also important, something that had not occurred to me with some 12mm gauge wagons I bought. Luckily problem was easy to solve. It has been a bigger issue with some of my own wagons coping with oddities of narrow gauge modelling(eg O14, O16.5).
One advantage I have found with this plastic is ability to stick card/paper and wood to it using cheap superglue. This could be useful for those wanting to use simple pin and hook homemade couplings.
Shapeways also say, it is not too late to order for Christmas, but I would add a warning that processing time can be dependent on size of order. It also might be different for other countries.

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 10:47 am
by Chris18
Tom, you have a very interesting online shop !
http://www.shapeways.com/shops/tebee

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 11:16 am
by tebee
Chris18 wrote:Tom, you have a very interesting online shop !
http://www.shapeways.com/shops/tebee


Feel free to browse !

Unlike many other scales almost all HO and OO wheelsets use a standard axle length - 25.5 mm from memory. There are a few exceptions - Lima being the main one. I suggest the Proto 2000 wheels because they have a good flange profile, are a little smaller than most OO wheels ( 10.5 mm diameter). run exceedingly well and are relativity heavy. I used them in my test Gn15 chassis and found they ran fine with these wheels and no additional weight. When I can find one - this mornings search failed to locate any - I'll weigh them and take a photo - this is one from 3 and a half years ago.


I've got the couplings finished I'll show them in the next post

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 11:45 am
by tebee
Link and Pin couplings to fit my Gn15 wagons ( or any other for that matter !)

Two types . Both come 12 to a sprue to keep costs down

A metal Bracket type http://shpws.me/A0tv



A wood buffer coupler http://shpws.me/zY7R


The metal type can either have a link inserted in the middle and held by a removable pin or a fixed pin and the link dropped over the top.

The wood type can have either a removable or fixed pin with the link dropped over the top.

The pin can either be a length of metal rod ( about 1.5mm diameter for a fixed one, 1.2 or less for a removable one) or one of these ones I do ( 12 arranged around a central sprue ) http://shpws.me/A0FC


Alternatively you can use this two pins plus captive three link chain arrangement I originally did for my 1:32 and On16.5 skips ( again 8 arranged around a central sprue) http://shpws.me/A0Fr




If you need anything more explaining please ask.

Tom

Re: New low price Gn15 wagons

Posted: Sun Dec 14, 2014 11:04 pm
by johna
Tom,

Order now placed so we will see if they arrive before Christmas.

John

Re: New low price Gn15 wagons

Posted: Tue Dec 16, 2014 5:49 pm
by Chris18
Maybe a strange question:
Do you have a view of this locomotive chassis seen from below? Thanks.


Re: New low price Gn15 wagons

Posted: Tue Dec 16, 2014 6:08 pm
by tebee
Like this - it's hollow

Fullscreen capture 16122014 190326.bmp.jpg
Fullscreen capture 16122014 190326.bmp.jpg (23.83 KiB) Viewed 3781 times

Re: New low price Gn15 wagons

Posted: Wed Dec 17, 2014 8:42 am
by Chris18
Many thanks Tom. It's very helpful.

Re: New low price Gn15 wagons

Posted: Wed Dec 17, 2014 11:55 pm
by tebee

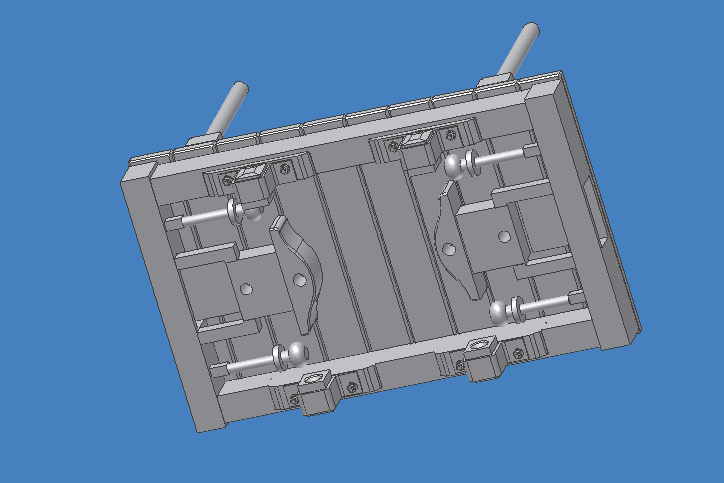

I have done a bit of revision to the design as I realised I could incorporate the wooden buffer/coupler and a couple of the coupler pins on sprues under the wagon and only increase the cost by less that 20p per wagon . So people now get a complete wagon, apart from wheels.

This is what it looks like -


Tom

Re: New low price Gn15 wagons

Posted: Thu Dec 18, 2014 2:11 am
by Tomo
Cleaver idea of integrating the wooden buffer/coupler and a couple of the coupler pins on sprues!

Re: New low price Gn15 wagons

Posted: Thu Dec 18, 2014 8:02 am
by Chris18
Very good idea !

Re: New low price Gn15 wagons

Posted: Thu Dec 18, 2014 8:37 am
by Chris18
tebee wrote:I have done a bit of revision to the design as I realised I could incorporate the wooden buffer/coupler and a couple of the coupler pins on sprues under the wagon and only increase the cost by less that 20p per wagon . So people now get a complete wagon, apart from wheels.

This is what it looks like -


Tom

Could you make the same thing for all your locos ?

Re: New low price Gn15 wagons

Posted: Thu Dec 18, 2014 6:41 pm
by rue_d_etropal
good idea Tom. I think the 'part count' changes Shapeways made have actually made us design better models. When the changes came in I looked through my designs and modified some, but it wasn't worth it for some. Easier ith new models at initial design stage.

Re: New low price Gn15 wagons

Posted: Thu Dec 18, 2014 7:40 pm
by tebee
The problem I have with the new pricing system is working out what constitutes the "machine space" part of the new pricing scheme.

The reason I've not added those parts to the wagon chassis without a floor or the loco chassis, is that it increases the machine space considerably, adding over 1$ to the price, which is more than the cost of the parts on their own. Indeed adding parts under the floor, but it the centre of the wagon, rather than at the ends, increases the price notably too.

I can only assume that, contrary to what Shapeways said, the machine space calculation is making some allowance for the hollow inside these models, and putting something in there causes it to be counted as chargeable space.

Tom

Re: New low price Gn15 wagons

Posted: Fri Dec 19, 2014 8:24 am
by Chris18
Thanks for these infos.

Re: New low price Gn15 wagons

Posted: Fri Dec 19, 2014 10:28 am
by rue_d_etropal
Tom, have you asked Shapeways for an explanation, as I did see some questioning of the prices and Shapeways admitting their software was making incorrect calculations. It may have been more to do with incorrect part counting, but they might have a similar problem on volume calculation, as what you say does not tally with what they are claiming. As you know software does get bugs in it , quite a lot of the time.
I have not had a look on their forum recently as it was not really saying anything positive, but have noticed there appears to be Shapeways people on other railway forums.

Re: New low price Gn15 wagons

Posted: Fri Dec 19, 2014 11:22 am
by tebee
No. I've not contacted them - mainly because I don't want to revise this again and change the price of everything ! I'm sure any changes will not be in our favour and I've still only repriced 500 out of the 2000 items from the last price change. I just did the most popular items and those with very poor margins.

One of my jobs over Christmas is going to be sitting down and repricing the rest - it's impacting my bottom line, I sold more items last month, but made 20% less.

The only way to find out what the machine space used is, seems to be uploading it - I ended up trying 7 or 8 different versions of the wagons with the added bits before I settled on one that I thought was most likely to be accepted for printing without adding too much to the cost.

When I'm feeing bored sometime I intend Adding a slate wagon and some US style wagons to the mix.

Tom
